ME1100

ME1100

MODEL:cnc milling machine

Capacity

1100

X axis travel/mm

600

Y axis travel/mm

500

Z axis travel/mm

150-700

Spindle nose to table surface/mm

650

Spindle nose to column surface/mm

Worktable

1200*600

Table Size(L*W)

100

Max Load on the table/kg

18*5*110

T-Slot Size/mm



Features:The first selection of mould processing models

Packing:Wooden Case,Standard packing

Delivery Time: 26Days


used cnc milling machine for sale

Datan CNC in compact vertical machine center 13 years, we offe you best rigidity on small cnc milling machine, less cost and less space from you.

used cnc milling machine for sale

Avoid the distortion in A.T.C. that caused the tools and spindle not in proper alignment.

Avoid the change in accuracy in worktable   Improving 40% in column rigidity Rolling structure in Z axis

used cnc milling machine for sale

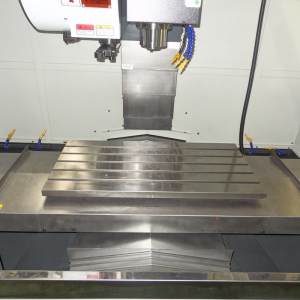

It adopts 6 rams designs in worktable, 20% rigidity more than normal design
in worktable.

Materials are in superior quality, best
cost-efficient.

used cnc milling machine for salesmall cnc milling machine


Avoid the accuracy loss caused by worn guiderail,
it keeps vmc milling machine in well maintenance, suitable to high speed machining.

used cnc milling machine for salesmall cnc milling machine


Best solution in improving rigidity for Z axis
by short Throat Depth,
Fewer quivers on spindle box in heavy load
cutting.

small cnc milling machine

It is more stable when Datan CNC adopts
the new Nitrogen Weight Balance system,
Now it is more fit to high speed machining.

used cnc milling machine for sale

This small cnc milling machine has 8 supporting feet plus thick honeycomb machine body structure, less distortion caused by weight, make the base more stable.

small cnc milling machine

vmc machine priceservice


Model No.  used cnc milling machine for salec vertical machining centerME850ME1100ME1300





Capacity

cnc vertical machining center

X axis travel/mm85011001300
Y axis travel/mm560600700
Z axis travel/mm610550610
Spindle nose to table surface/mm150-760150-700150-760
Spindle nose to column surface/mm610650785
WorktableTable size/(L*W)1000*5001200*6001400*650
Max load on the table/kg80010001000
T-slot size/mm18*5*10018*5*11018*5*100
SpindleSpindle speed/rpm60-800060-800060-8000
Spindle taper/spindle shank7/24 Taper BT407/24 Taper BT407/24 Taper BT40
Max spindle inner diameter/mmΦ70Φ70Φ80
Spindle motor(30 mins,mitsubishi)/kw7.51111
Feed rateX,Y,Z rapid traverse/M/min15/15/1524/24/2418/18/15
Max cutting feed rate(M/min)10/10/1010/10/1010/10/10
A.T.CTool storage capacity/pc2424Armless type 24
Max tool diameter(adjacent tools)/mmΦ150(80)Φ150(80)Φ150(80)
Max tool length/mm300300300
Tool change time(T-T)/sec2.52.52.5
AccuracyPositioning accuracy/mm±0.01±0.01±0.01
Repeatability positioning accuracy/mm±0.005±0.005±0.005
Machine sizeMachine height/mm260026002600
Space requirement(L*W)2800*24503200*25003500*2700
Net machine weight/kg5800650010000
Power requirement/KVA202030
Drive motor/kw2.0/2.0/2.02.0/3.5/2.02.0/3.5/2.0
Control systemSiemens 808DSiemens 808DF-0iMD/M70




Standard machine configuration

cnc vertical machining center

1. Control system:F-0iMD/M70 .
2. 7/24 Taper BT40 spindle ,8000rpm spindle from China Taiwan, HNC Servo motors
3. armless type A.T.C system,20 tools;
4.fully enclosed splash guard of machine
5.steel telescopic covers for 3 axis guide rails
6.work lamp and alert lamp
7.tool box and maintenance tool
8.heat exchanger
9.auto lubrication system
10.separate water tank
11.handwheel
12.380v/220v,50HZ transformer
13.free standard accessories

Main part supplier

cnc vertical machining center

1. controller: F-0iMD/M70 from China Taiwan
2. x/y/z servo motor: HNC servo motors from China
3. x/y/z drive and converter: made in China
4. spindle motor: made in China
5. ball screw :made in Taiwan(Hiwin Brand)
6. ball screw bearing: HRB made in China(Chinese No.1 bearing)
7. spindle bearing :HRB from China.
8. handwheel: SUMTAK from Japan
9. electrical component: made from China Taiwan
