TX32

Model NO.

CNC/TX32B

CNC/TX32ZB



worktable(L*W) (mm)

850*320

850*320



Max load on table(kg)

150

150



X,Y,Z axis travel (mm)

500*300*360

500*300*360




Features:Leads the market for 20 years,affordable cnc milling machine bed type modular combinations

Packing:Wooden Case,Standard packing

Delivery Time: 26Days


affordable cnc milling machine

mini cnc mill

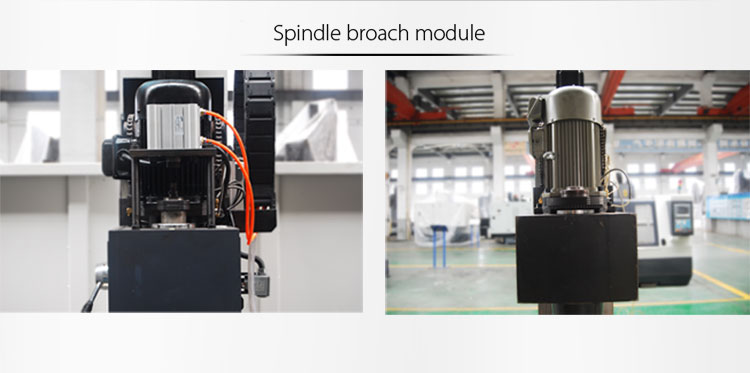

Equipped with pneumatic tool change,which can make the tool
change more quickly.affordable cnc milling machine

Equipped with boom broach tool change,which can make the
chip gear more powerful.

mini cnc mill

mini cnc millmini cnc mill

CNC boring and affordable cnc milling machine are made of resin sand casting, the wide guideracks have excellent wear-resistant performance, thus the machine tool has a good rigiduty;double-nut ballscrew ensures good precision and stability;the mainstock with manual speed and spindle of BT40 taper make this type of machines a high rigid universal affordable cnc milling machine, suitable for machine speed processing in boring, milling, drilling and tapping.

mini cnc mill

mini cnc millmini cnc millmini cnc millmini cnc millgolden service

used milling machine

TX32 wooden case size

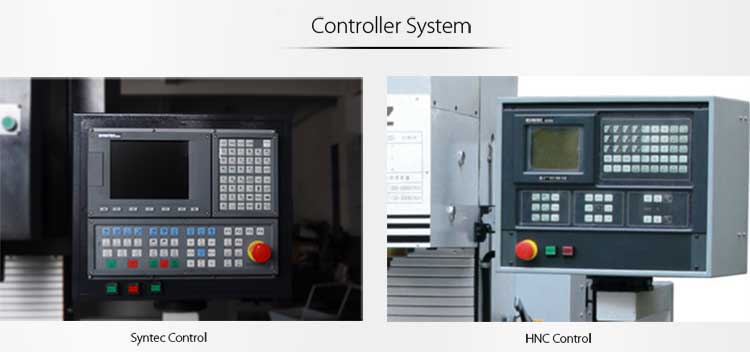

Main machine configuration1.affordable cnc milling machine control system: GSK/Syntec EZ4/HNC21 CNC controller, HNC servo motor,3 axis machining.
2.frequency-changing speed adjustment, 3.0kw frequency-changing spindle motor, 100-3000 rpm spindle.BT40 taper;
3.pneumatic cylinder for tool dismantle;
4.fully enclosed splash guard,3-5 seconds
5.3206 ball screws;
6.C grade spindle bearing;
7.separate cooling pumps;
8.electric concentration lubrication system
Optional1.      CNC Controller: GSK/Syntec EZ4/HNC21 or FANUC/Mitsubishi
2.      Spindle speed.6000 or 8000rpm
3.      worktable guard ,half cover or full coverAnd more as your need.mini cnc mill

affordable cnc milling machine
